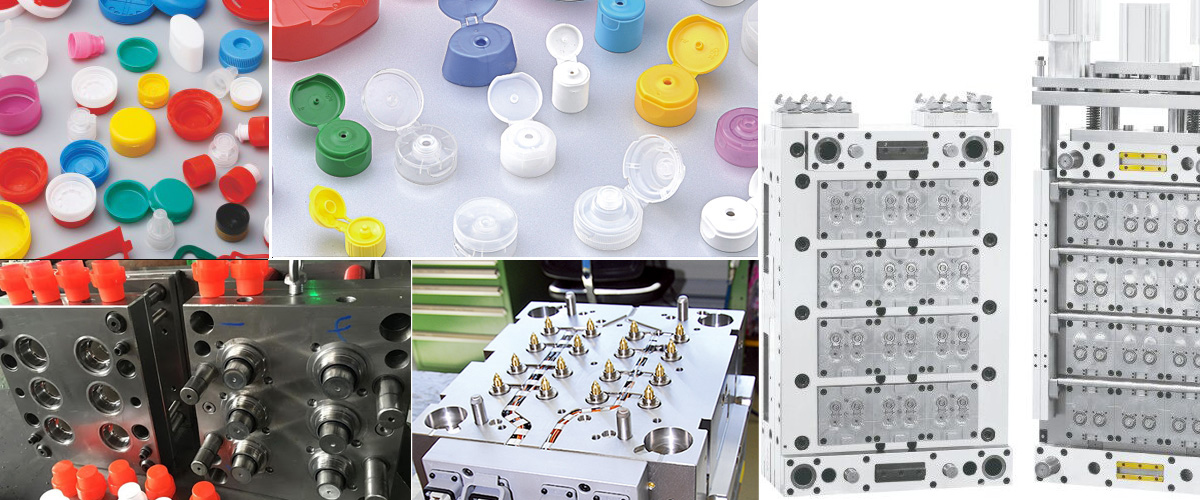

China flip top cap mould

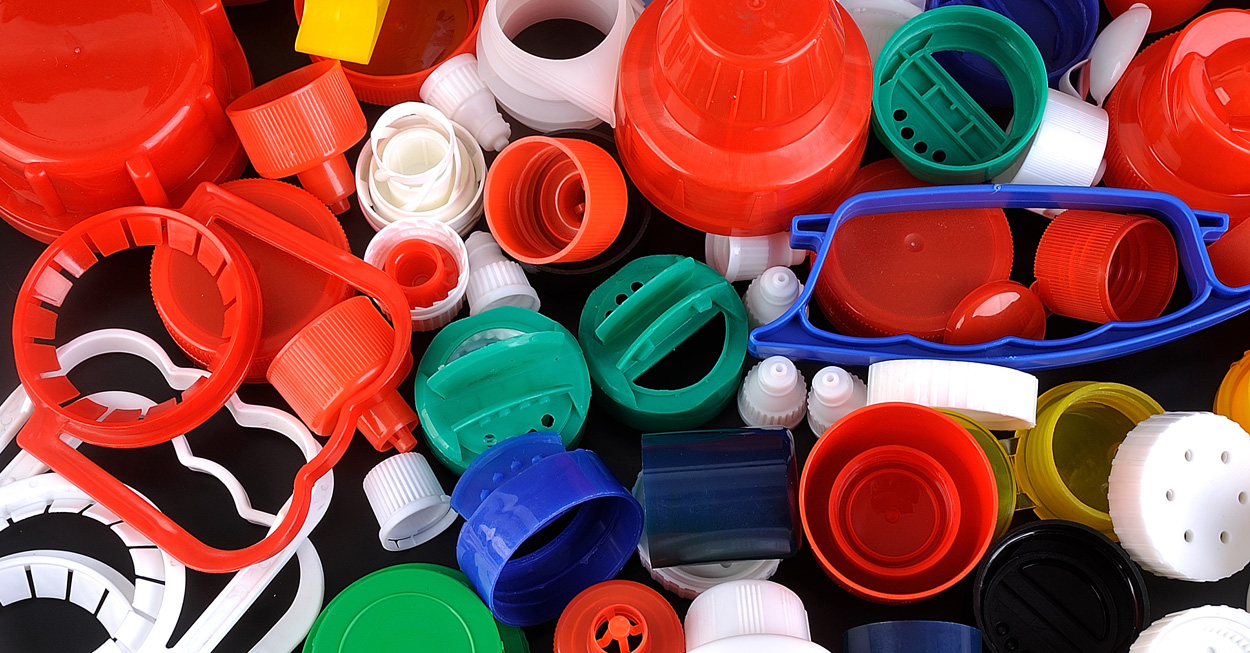

Flip Top Cap also know as Flip Top Caps & Cap mould Stopper Cap is one of type closure used for Plastic Bottles. Flip Top Plastic Bottle Caps were used in packaging Hand sanitizers, Baby shampoo, Hair oil, and other essential oils. Intiallialy it was used for beer & mineral water but nowadays it was used by ayurvedic and herbal formulation manufacturers, lotions, shampoos, and tomato ketchup producers.
Invented by Charles de Quillfeldt (United States) who filed a patent on 30 November 1874 & got it in the year 1882. Later on, he created many more varieties of Plastic Bottle Caps.

Place of originChina JINTENG mould
BrandJINTENG
Cavity24
Mould base materialP20, 420 etc.
Core, cavity, neckS136, 2316, SKD61 etc.
Surface treatmentHigh polish
warranty1 year without man-made


  • Description
Location:TAIZHOU,CHINA
Business Type:Manufacturer, Exporter
Brands:JINTENG
Cavity24
Model:Plastic mould and machinery
Delivery method:By air, By sea, By express.
Minimum order quantity:1PC/SET
Price:Consultation
Packing details:Standard export packing way
Delivery time:30-60days
Payment method:TT,LC,Paypal,Westen Union

● Plastic Flip Top Caps Injection Mold Cavity:4 & 8 & 16 Cavities.
● Plastic Flip Top Caps Injection Mold Main Material:SUS420 HRC50˚±1˚.
● Plastic Flip Top Caps Injection Mold Injection System:Cold Runner System.Hot Runner System (Taiwan Brand).
● Plastic Flip Top Caps Injection Mold Ejection System:Ejector Pin & Stripper Plate & Two Steps Ejector.
● Plastic Flip Top Caps Injection Mold Cycle Time:10 ~ 18 ± 2 Seconds.
● Plastic Flip Top Caps Injection Mold Running:1 year Guarantee; Shots guarantee 1 million under the normal operation and period maintenance.
● Plastic Flip Top Caps Injection Mold Delivery Time:80 ~ 100 working days to T1 sample delivery.
● Plastic Flip Top Caps Injection Mold Features:High Polish.


1. Product Specification

Place of originChina
BrandJINTENG
Cavity24
Mould base materialP20, 420 etc.
Core, cavity, neckS136, 2316, SKD61 etc.
Surface treatmentHigh polish
warranty1 year without man-made

1.The mold plate is made of stainless steel.
2. Mold ranges from 1 cavity to 72 cavities.
3. Standard interchangeable mold components.
4. High performance hot runner system ensures uniform melt flow and pressure in all cavities.
5. All of parts are manufactured by CNC equipments.
6. Advanced structure is designed consulting European cap mold.
7. Mold cavity and Core are made of steel with fine polishing, high hardness and anti-corrosion to get mold's high precision and good quality.
8. Pneumatic drive the nozzle pin for simultaneous high-speed open and close actions.
9. Patent designed rectifying system is adopted to lessen the possible preform thickness problem happening during production.
10. Special designed water hoses eliminate leakage and water marks on preform.
11. Mold flow analysis reduce AA level.
12. Long using life over 2.5 million times of injection cycle.



Product Name
China Taizhou Fashion Design Hot Selling Shampoo Detergent Bottle Plastic Injection Flip Top Cap Mould
Cavity&Core SteeP20H,718H,2738H,S136,H13 etc.
Product MaterialPP,HDPE,LDPE etc.
Mould BaseLKM,ISM,HASCO,DME
Cavity24 cavities
Mould life500,000 ~1million shots
runner typecold/hot runner
Delivery time30~60day
The main Mould Steel and Hardness for you reference:
Steel GradeS50CP20P20HH718H2738HH13S136NAK80
Hardness(HRC)
17-22
27-30
33-37
33-38
36-40
45-52
48~52
34-40
