24 cavity Plastic Handle Cap mould


Description

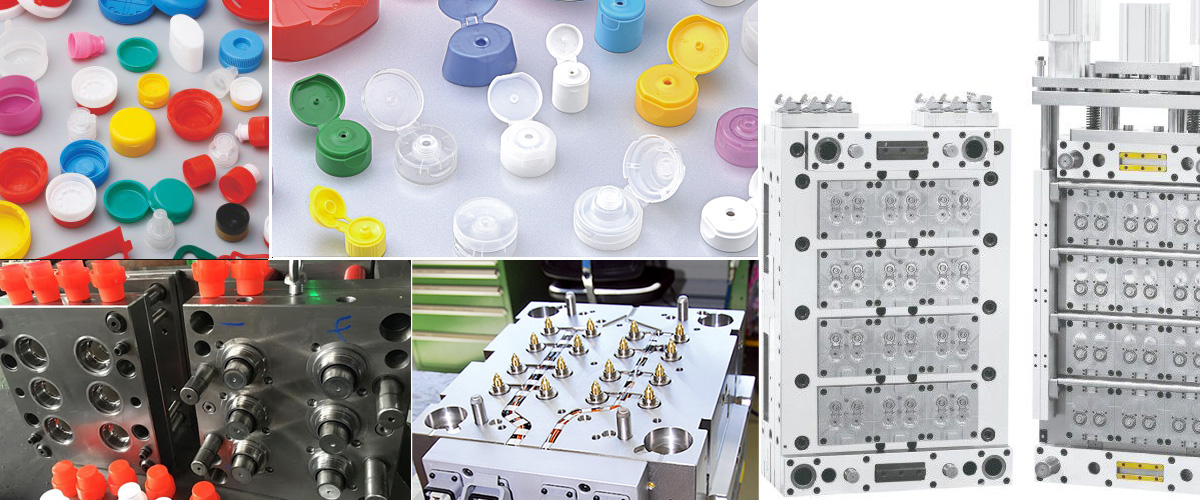

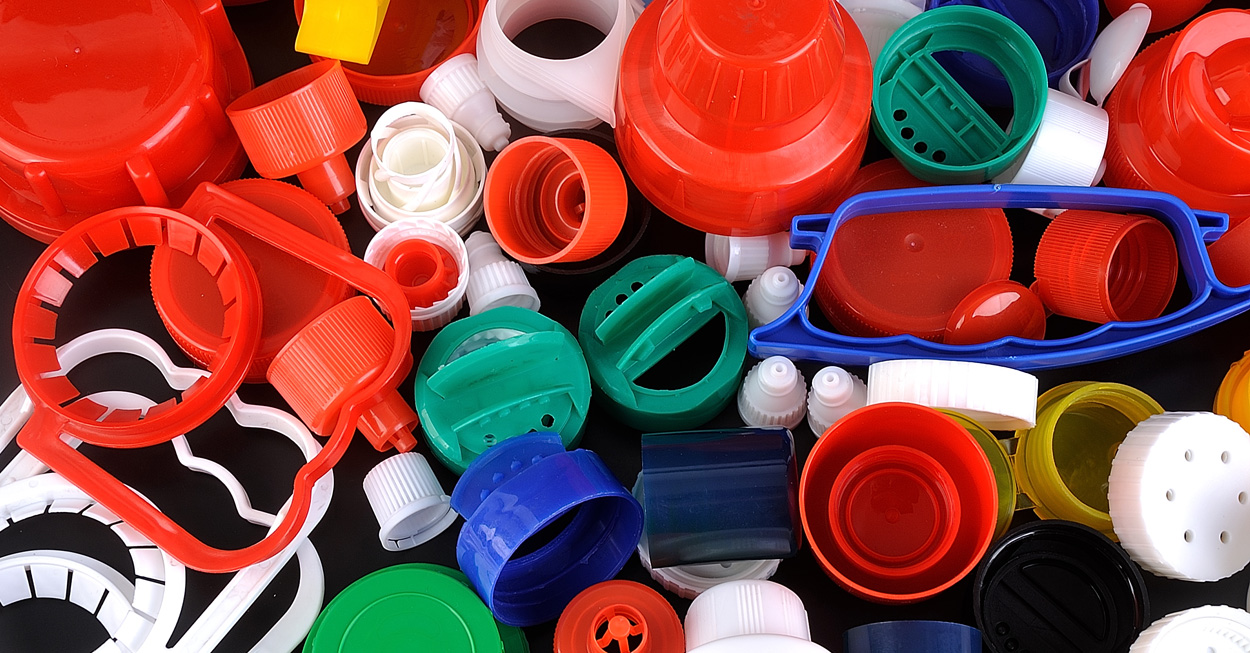

We are able to produce all type of Plastic Caps & Handle & Preform in very kind of bottle usages from Beverage to Pharma industries. As we have too much neck dimension, please contact us about your exact demand to prepare our special offer for you. Also available for colored production like green, purple, brown...

Regarding to mould division we are able to produce you injection or thermoformed moulds with shortest lead times. Mostly being used in packaging machines and household productions.

Besides we can supply you some additional products for Dispenser size (Carboy) bottled water parts like: Supom Carboy Water Pump, Handled Carboy Pump, Carboy Water Funnel, Carboy Water Cabinet, Carriage Trolley, Carboy Screw Cup Holder...


  • Description
Product NamePlastic handle mould
Core &Cavity Steel2316#steel, S136, H13, 718, SKD61, P20, S50C, 45#steel, 4Cr13,
3Cr13, BeCu or based on customer's requirement.
Mould base & Standard ComponentDME,HASCO,MISUMI,LKM,Self-made etc.
Steel hardness: HRC30-35 for base material.
HRC45-48 for core and cavity material.
HRC60-62 for special parts material
Plastic materialPP,,PE,HDPE etc.
Cavity Number1*4, 1*6, 1*8,1*12, 1*16, 1*24,
Injection SystemPin gate, Submarine gate, Valve gate etc
Ejector Systemstripper plate, ejector sleeve, ejector pin
Cycle TimeBased on cap design
Tooling lead time30-60 Days
Mould lifeAt least 1.5million Shots


Handle Mold Feature
1. Adopt imported steel P20, Germany 2316, S136 etc.
2. Each cavity and core have independent cooling system, with independent parts for replacement
3. Rational mold design to extend mold life and get high production efficiency.
4. Mirror hand polishing and mold plates chroming to create added-value.
5. Precision Machining to ensure high production efficiency & fine parting line effect.
6. Skilled Language in communication and experienced in international standard.
7. Hot runner system: China advanced brand or imported hot runner system brand.
    Each cavity has independent temperature control and heater system.


Plastic handle mould
1.R&DWe support customer R&D. Make the files or improve the design if you needed.
2.Quotation MakingMould Quotation will be finished in 1 day according to information we get.
3.NegotiationThe quality, price, material, delivery time, payment item, etc.
4.Mould Design1-2days for product 3D/2D drawing design as per customer's design or our company's design. Then in further make the mould 2D/3D design.
5.Mould1. confirm the proucts and the mold design
2. Mould material prepare
3. Rough machining(heat treatment on mold base and pre-harden on mold)
4. CNC/ Vacuum Hardening on mold main spare parts
5. finishing machining( JDPAINT, DEM.etc)
6. Dimension inspection
7. Ejector& runner& cooling & other device process
8. Assemble mold
6.Mould TestingWhen moulds are finished, we will test the mould and we will send samples for consumer reference.
7. Sample confirmationIf the first sample is not satisfied by customer when it is come out. We modify the mould and until meet customer’s satisfaction.
8.DeliveryDelivery goods by sea or by air, according to customer’s requirement.



Product NamePlastic handle mould
Plastic MaterialPPR,PP, PP+GF, PP+ TALC,PE,ABS,POM,PPH…etc.
PC, PS, PMMA for Transparent.
Steel of Cavity & CoreDepends on Product, we help customer to choose the suitable material.
Commonly used material as below:
Buderus: 1.2311, 1.2738, 1.2344, 1.2316, BPM-HH, SUS-420…etc.
Finkl: P20, HiP-20, H13…etc.
Hitach: NAK80, DAC, FDAC, SKD61…etc.
Assab: 618, 718, STAVAX…etc.
Steel of Mold BaseDepends on Product, we help customer to choose the suitable material.Commonly used material is S50C.
No. of CavityCustomized
Hardness of Cavity & CorePre-Hardness Steel: HRC 30 ~ 32 ± 1°
Heat Treatment Steel: HRC 50~52± 1°
Core pulling or Ejection systemDepends on the Product.
Commonly used : Motor, oil cylinder, stripping plate, angel pin, ejector pin…etc
Mould AccessoriesCompatible to DME/HASCO Standard.
Cooling SystemIn Core: Baffle or By pass cooling
In Cavity Plate: Chain drilling type cooling
Surface FinishDepends on the product.
Commonly used: Texture Hatching, EDM Hatching, Polishing, Diamond Polishing…etc.
Mold LifeDepends on the steel hardness and the plastic material.
Commonly used:
300,000 ~ 500,000 shots or 1 year under normal use procedure for Pre-Hardness material.
1,000,000 shots or 1 year under normal use procedure for Heat Treatment material.
Runner1.   Cold Runner. 2.   Hot Runner.
Delivery timeDepends on the product size and complication. For First trial: 45 ~ 80 days after mold drawings approved.
PackingStandard Wooden Case
Machine CenterCNC milling machine, CNC Lathing machine, EDM, NC milling & lathing machine and so on.
R & DWe offer customers the drawings for products and mold design. Also we provide extra service such as: Reversing Engineering Drawing, Optical Design, Photometric Design… etc. We can work with 2D/3D drawings or with provided samples.
ProductionWe can also provide Pilot Run production and molding production.
