Cap Mould

Call me:0086-576-84195363

Oil bottle cap mould


Jinteng mould  factory has been manufacturing oil bottle cap mould for many years. Wedevoted ourselves to  cap mould, caps moulds injection mould, which are sold in more than 60 countries and areas.

We sincerely hope to establish good and long-term cooperation with customers all over the world!

Pioneers in the industry, we offer Plastic Bottle Cap Mould Die, Plastic Cap Mould Die, Cap Mould Die and 28mm Plastic Cap Mould Die from China.

Aim of the technology developed by Bitop mould is to reduce the cycle time to the bare minimum. Bitop mould for production of closures for soft-drinks, mineral water, milk, juice, oil, spirit, cream and many other products are now among the most performing both for productivity and reliability.

We have significant experience in the manufacture of cap moulds for different types of closures by customer's demand.

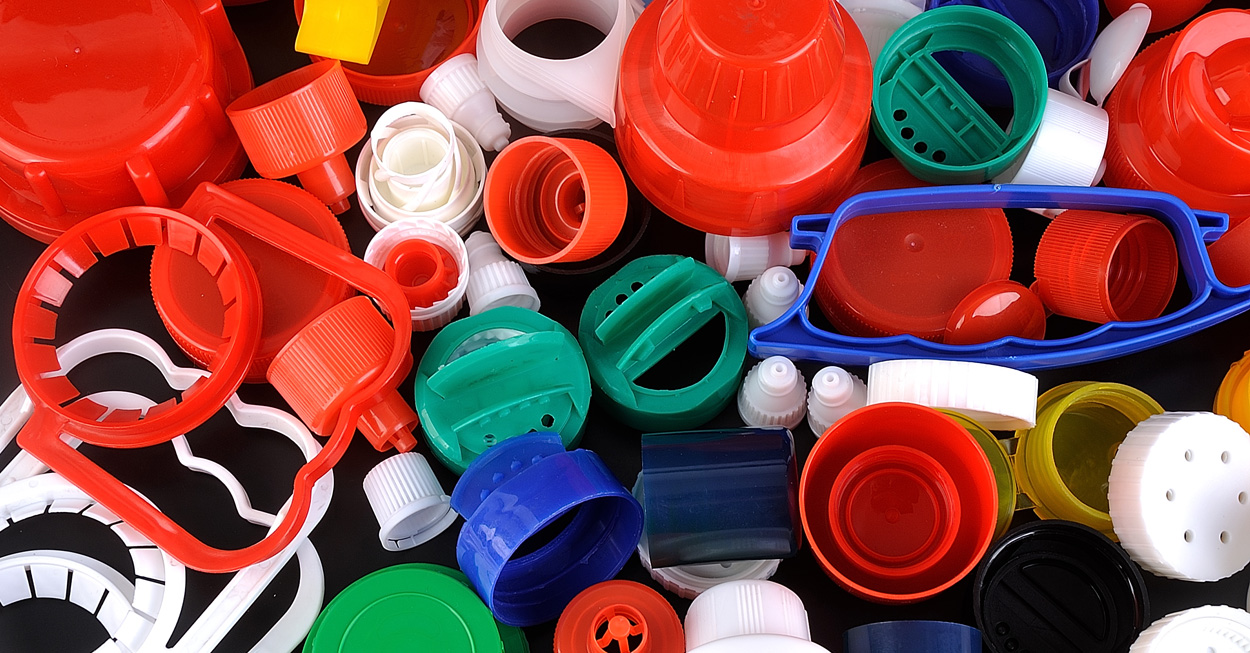

Lightweight Caps:-Mineral water cap mould,Beverage cap mould,5 gallon cap mould,Theft proof cap mould,Shampoo cap mould,Different kinds of oil cap mould

,Sport cap mould,Cosmetics cap mould,Wine cap mould.


  • Description

Jinteng Mould is the famous Chinese cap mould maker which specialized in producing water cap mould and bottle cap mould. We can offer you different kinds of plastic cap mould solutions, eg, automatic unscrewing ejection cap solution, bi-injection system cap solution, complex flip top cap solution and irregular shape design cap solution.


We have long history and rich experience in making bottle cap mold. With the advantage of Stavax S420 for core and cavity, P20 for mould base, our cap molds have the longer mould life and durability.

In order to become the biggest bottle cap mould maker in china, we devoted to keeping high quality in cap molds. Our flip-top cap mould used Stavax S420 stainless steel, tempered with HRC55+/-2 with maximum mould life. We also have various shape design and size for your special plastic cap mold demand.

Jinteng Mould is your best choice if you are looking for a credible cap mould company. We could offer you high quality and reasonable price mould.

Please contact us. We offer you not only a mould, but a fine solution…….

Mould Name :Oil bottle Cap mould

Cycle Time: 9s/stroke

Mould Life: 10 million shots

Mould Steel Material: Core & Cavity: Stavax S420, Mould Base: P20


Product NamePlastic Oil Caps Injection Mold
Plastic MaterialPPR,PP, PP+GF, PP+ TALC,PE,ABS,POM,PPH…etc.
PC, PS, PMMA for Transparent.
Steel of Cavity & CoreDepends on Product, we help customer to choose the suitable material.
Commonly used material as below:
Buderus: 1.2311, 1.2738, 1.2344, 1.2316, BPM-HH, SUS-420…etc.
Finkl: P20, HiP-20, H13…etc.
Hitach: NAK80, DAC, FDAC, SKD61…etc.
Assab: 618, 718, STAVAX…etc.
Steel of Mold BaseDepends on Product, we help customer to choose the suitable material.Commonly used material is S50C.
No. of CavityCustomized
Hardness of Cavity & CorePre-Hardness Steel: HRC 30 ~ 32 ± 1°
Heat Treatment Steel: HRC 50~52± 1°
Core pulling or Ejection systemDepends on the Product.
Commonly used : Motor, oil cylinder, stripping plate, angel pin, ejector pin…etc
Mould AccessoriesCompatible to DME/HASCO Standard.
Cooling SystemIn Core: Baffle or By pass cooling
In Cavity Plate: Chain drilling type cooling
Surface FinishDepends on the product.
Commonly used: Texture Hatching, EDM Hatching, Polishing, Diamond Polishing…etc.
Mold LifeDepends on the steel hardness and the plastic material.
Commonly used:
300,000 ~ 500,000 shots or 1 year under normal use procedure for Pre-Hardness material.
1,000,000 shots or 1 year under normal use procedure for Heat Treatment material.
Runner1.   Cold Runner. 2.   Hot Runner.
Delivery timeDepends on the product size and complication. For First trial: 45 ~ 80 days after mold drawings approved.
PackingStandard Wooden Case
Machine CenterCNC milling machine, CNC Lathing machine, EDM, NC milling & lathing machine and so on.
R & DWe offer customers the drawings for products and mold design. Also we provide extra service such as: Reversing Engineering Drawing, Optical Design, Photometric Design… etc. We can work with 2D/3D drawings or with provided samples.
ProductionWe can also provide Pilot Run production and molding production.
